16Mn Honed tube is a superior-grade, cold-drawn seamless steel tube that undergoes a precise finishing process known as honing. The base material, 16Mn, is a Chinese standard (GB/T 8162) low-alloy high-strength steel, analogous to grades like AISI/SAE 1020 or ST52. The combination of this robust material and the honing process results in a product renowned for its exceptional mechanical properties, excellent internal surface finish, and tight dimensional accuracy. This makes it the ideal choice for critical applications across various heavy-duty industries.

Key Advantages of 16Mn Material

The "16Mn" designation indicates a carbon content of approximately 0.16% and a manganese content of around 1.20-1.60%. This composition provides a significant performance advantage over standard carbon steels:

High Strength & Toughness: Offers excellent yield strength (≥345 MPa) and tensile strength (470-630 MPa), providing superior load-bearing capacity and resistance to deformation under high pressure and shock loads.

• Good Wear Resistance: The increased hardness and strength contribute to remarkable resistance to abrasion and wear, extending the service life of components.
• Weldability and Machinability: Despite its strength, 16Mn steel maintains good weldability and machinability, allowing for easier fabrication and integration into complex hydraulic and pneumatic systems.

The Honing Process: Creating Perfection from the Inside Out

Honing is an abrasive machining process that produces a precise, cross-hatched surface finish on the internal diameter (ID) of the tube. This is not merely polishing; it is a material-removing operation that achieves several critical objectives:

• Superior Surface Finish: It eliminates the microscopic imperfections, scratches, and decarburized layer left from previous drawing processes. The result is an ultra-smooth surface (typically achieving Ra ≤ 0.4 μm or better) that minimizes friction and wear on seals, pistons, and rods.
• Precise Geometrical Accuracy: Honing corrects deviations in straightness, roundness, and cylindricity. This ensures the tube has a perfectly consistent internal diameter along its entire length, which is crucial for preventing leaks and ensuring smooth, efficient operation of hydraulic cylinders.
• Optimal Oil Retention: The characteristic cross-hatch pattern acts as a reservoir for lubricating oil, promoting consistent lubrication between moving parts and further reducing friction and the risk of scoring.
• Extended Component Life: By providing an ideal surface for dynamic seals to work against, honing drastically reduces wear on both the tube itself and the sealing elements, leading to longer maintenance intervals and improved reliability.

Manufacturing Process: SKIVED AND ROLLED (S&R)

The most common method for producing honed tubes is the Skived and Rolled (Burnedished) process:

• Skiving (Precision Boring): A single-point cutting tool machines the ID of the cold-drawn tube to achieve near-final size and correct geometric inaccuracies.
• Roller Burnishing: A hardened roller tool is then passed through the bore under high pressure. This cold-works the surface, compressing the metal to create a mirror-like finish, improving surface hardness, and inducing beneficial compressive stresses that enhance fatigue strength.
• This S&R process is highly efficient and produces a surface quality often superior to traditional honing alone.

Applications

16mn Honed Tubes are the backbone of countless industrial systems where reliability and performance are non-negotiable:

• Hydraulic Cylinders: The primary application. Used as the cylinder barrel in manufacturing, construction (excavators, bulldozers), agricultural machinery (tractors, combines), and mining equipment.
• Pneumatic Cylinders: For high-precision, high-pressure air cylinders.
• Automotive Shock Absorbers: As the pressure tube for smooth and durable operation.
• Plastic Injection Molding Machines: For injection and clamping cylinders.
• Material Handling Equipment: In forklifts, lifting platforms, and hydraulic presses.
• General Precision Machinery: Any application requiring a seamless tube with a precise, smooth, and wear-resistant internal bore.

Quality Control and Specifications

Reputable manufacturers adhere to strict quality control protocols, testing for:

• Chemical Composition: Verifying conformity to 16Mn standards.
• Mechanical Properties: Tensile strength, yield strength, and elongation.
• Dimensional Tolerances: Outer Diameter (OD), Inner Diameter (ID), and wall thickness.
• Surface Finish: Measured with a profilometer to ensure Ra value.
• Hardness: Typically measured on the outer surface.
• Non-Destructive Testing (NDT): Eddy current or ultrasonic testing to detect any internal or external flaws.

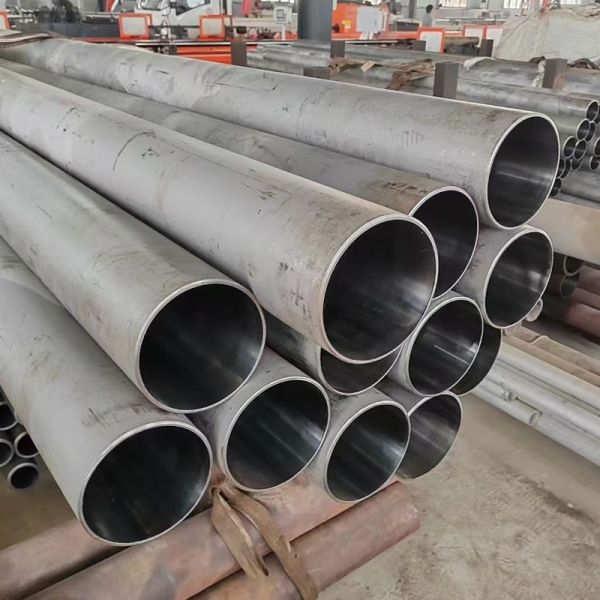

16mn Precision Honed Tube Images
