45# Precision Honed Tube

45# Precision Honed Tube
A 45# Honed tube is a high-precision, cold-drawn seamless steel tube manufactured from 45# grade carbon steel (AISI 1045) and subsequently finished with an internal honing process. This specialized manufacturing sequence transforms a standard seamless tube into a critical component designed for applications demanding exceptional dimensional accuracy, superior surface finish, and outstanding mechanical properties. Primarily serving as the cylinder barrel in hydraulic and pneumatic systems, the 45# Honed Tube is the foundation upon which reliable, efficient, and long-lasting linear actuators are built.

Material Properties: 45# Carbon Steel

The base material, 45# steel (equivalent to AISI 1045, EN C45), is a medium-carbon steel renowned for its excellent balance of strength, toughness, and machinability. Its typical carbon content (0.42-0.50%) provides higher strength and wear resistance compared to lower carbon steels like 20# or ST52. This makes it ideally suited to withstand the high internal pressures, dynamic loads, and potential shock forces encountered in heavy-duty hydraulic applications. While it requires more power to hone than lower carbon steels, the resulting component offers a significant performance advantage in demanding environments.

The Honing Process: Achieving Precision

The defining characteristic of these tubes is the honing process. This is an abrasive machining operation that removes a minimal amount of material from the internal surface (ID) to achieve three critical objectives:

• Superior Surface Finish: Honing creates a cross-hatch surface pattern with a very low roughness value (typically Ra ≤ 0.4 μm or better). This ultra-smooth finish minimizes friction and wear on the piston seals, ensuring smooth operation, reducing leakage, and drastically extending the service life of both the cylinder barrel and the seal kit.
• Exceptional Dimensional Accuracy: The process guarantees tight tolerances on the inner diameter (e.g., H8 or H9) and straightness. This precise geometry is crucial for the precise alignment of the piston and rod assembly, preventing premature seal failure, side-loading, and ensuring consistent performance.
• Improved Surface Integrity: The honing process creates a surface free of fragmented, amorphous metal (smear metal) that is common after other machining processes. This produces a clean, work-hardened surface that is optimal for sealing.

Advantages and Characteristics

• High Pressure Resistance: The strength of 45# steel allows these tubes to operate reliably in high-pressure hydraulic systems.
• Excellent Wear Resistance: The combination of the hardened material and the smooth honed finish provides exceptional resistance to abrasion from contaminants and seals.
• Sealing Performance: The fine surface finish allows for an perfect seal with piston seals like polyurethane (PU) or nitrile (NBR) rings, eliminating internal leakage.
• Cost-Effectiveness: For applications requiring more strength than low-carbon steel but not the expense of alloy steel, 45# honed tubes offer an ideal price-to-performance ratio.
• 45# honed tubes are the industry standard for robust hydraulic cylinders across numerous sectors:
• Construction Machinery: Excavators, bulldozers, backhoes, and crane booms.
• Manufacturing Equipment: Injection molding machines, metal stamping presses, and other industrial machinery.
• Material Handling: Forklifts, hydraulic lifts, and dump trucks.
• Agricultural Equipment: Tractors, harvesters, and balers.
• Automotive Industry: Used in various lifting and testing equipment.

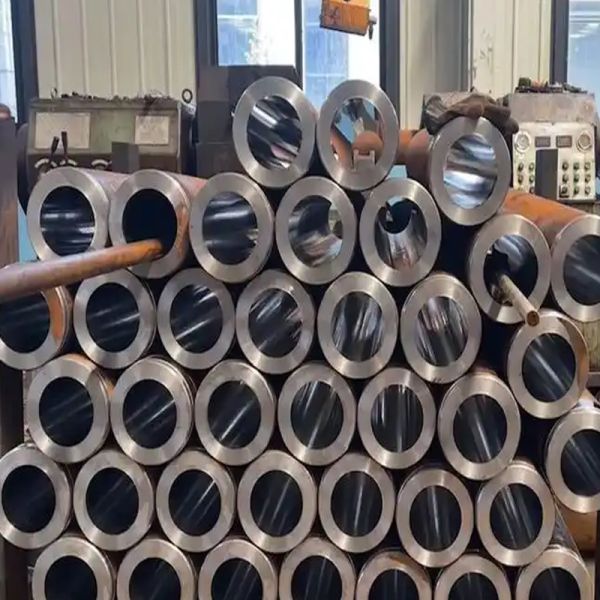

45# Precision Honed Tube Images
